Floor plans measured to ANSI Z765 for your listings, delivered in 24 hours or less.
Precision Floor Plans measures homes across Onslow and Pender counties, NC and hands you a clean, listing-ready floor plan PDF. Every sketch follows ANSI Z765, so the square footage you publish is one you can stand behind.
How it works
Four steps from booking to a floor plan you can drop straight into the MLS.
Send the property details
Use the form below or email us the address, approximate square footage, and the tier you need. We confirm a visit time, usually within one business day.
We measure on site
We measure the exterior and interior, following the ANSI Z765 procedure for what counts as finished living area. Most homes take 30–45 minutes.
We draw and check the plan
Measurements go into a clean, labeled sketch. Every plan is cross-checked against the field notes before it leaves our hands.
You get a listing-ready PDF
Your branded floor plan arrives by email within 12 or 24 hours of the visit, depending on the tier. Ready for the MLS, brochures, and buyer packets.
Services and pricing
Two options, flat pricing, no per-square-foot surprises. Both are measured to ANSI Z765, and both are marked down from our regular rates while we grow our client base.
GLA Only
$150$100Intro pricingA labeled exterior sketch with gross living area measured to ANSI Z765. The fast option when the number is what matters.
12-hour turnaround- GLA measured to ANSI Z765, with below-grade area reported separately
- Exterior outline with dimension lines
- Labeled areas (living, garage, porches)
- Listing-ready PDF, branded to your brokerage
- Interior walls and room layout

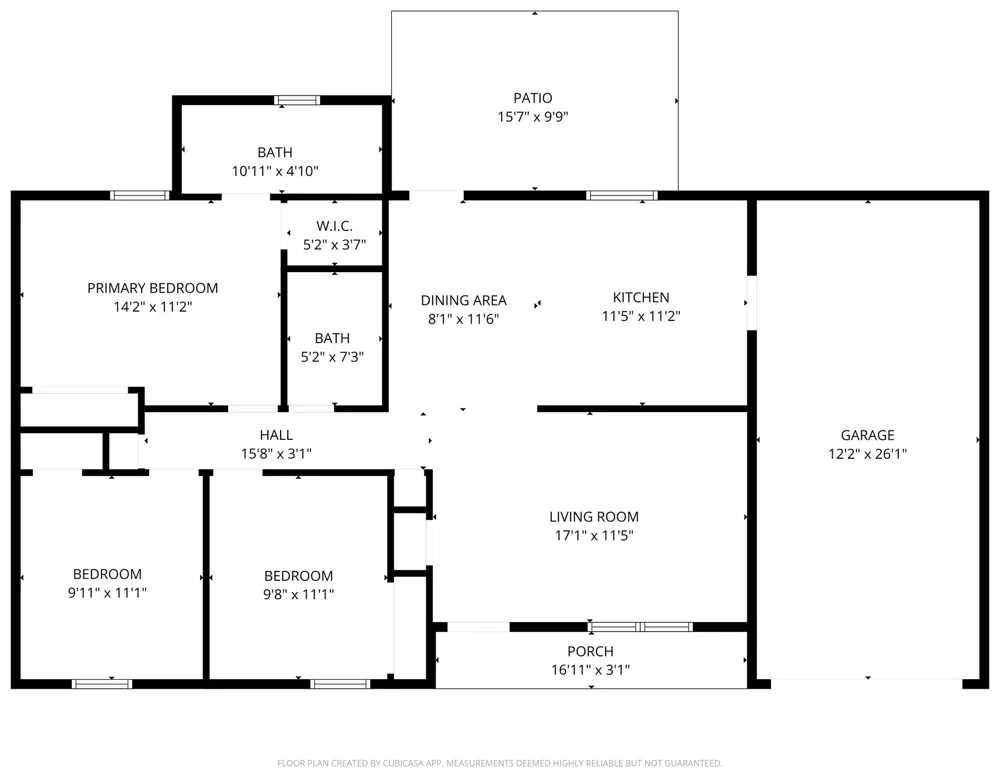

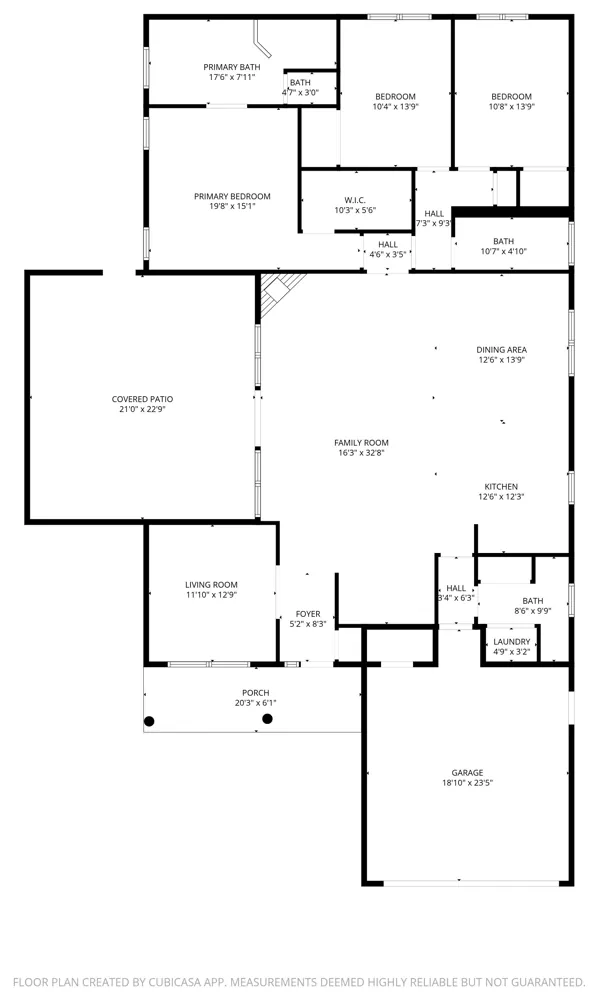

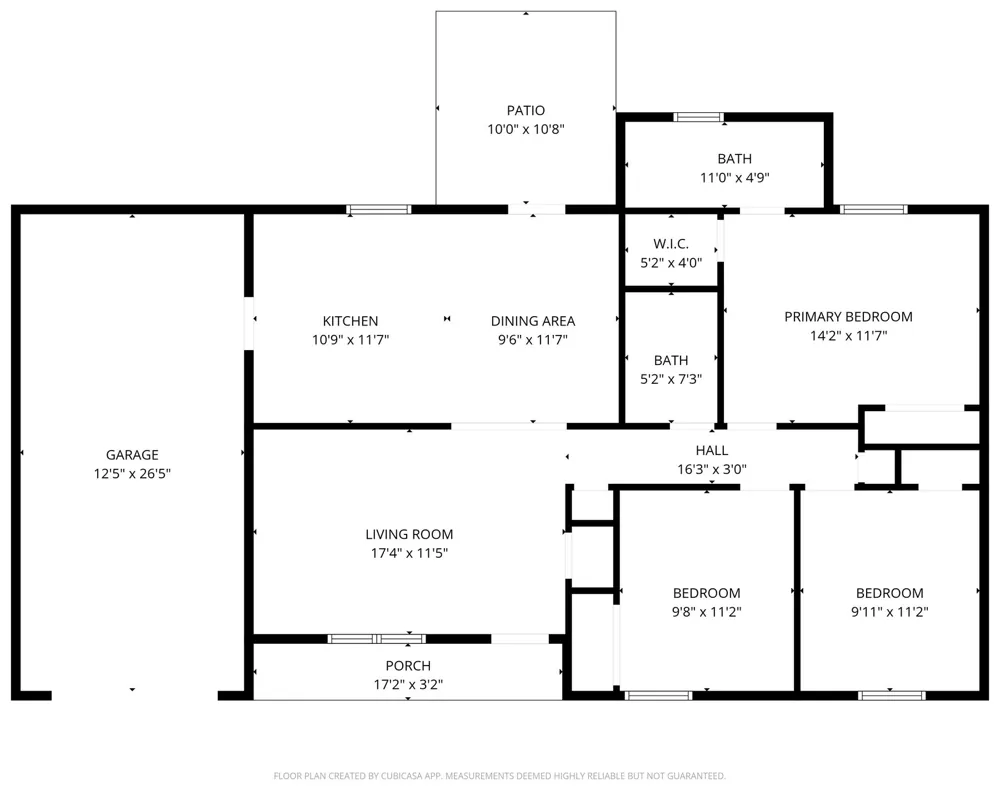

GLA + Sketch with interior walls
$200$150Intro pricingThe full floor plan buyers expect to see: rooms, walls, doors, and windows, plus GLA measured to ANSI Z765.
24-hour turnaround- Everything in GLA Only
- Interior walls, doors, and windows
- Room names and room dimensions

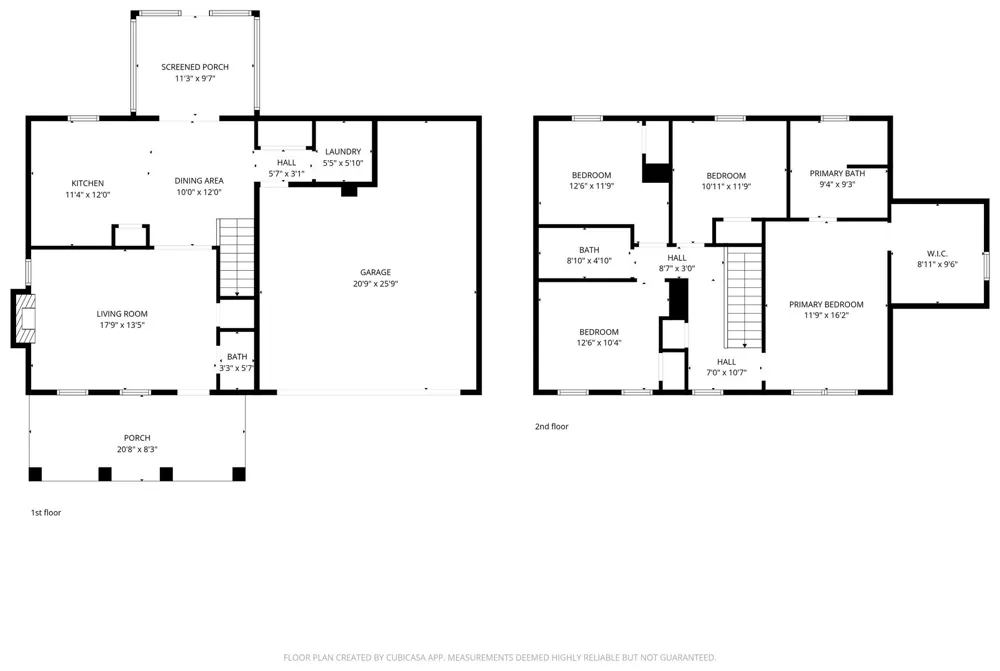

- Separate page per level for multi-story homes
- Listing-ready PDF, branded to your brokerage
Rush service
Need the full floor plan sooner? Add rush service to the GLA + Sketch tier and receive it within 12 hours instead of 24.
Pricing covers a single residential property in Onslow or Pender County. Ask about volume pricing for brokerages and teams with recurring listings.

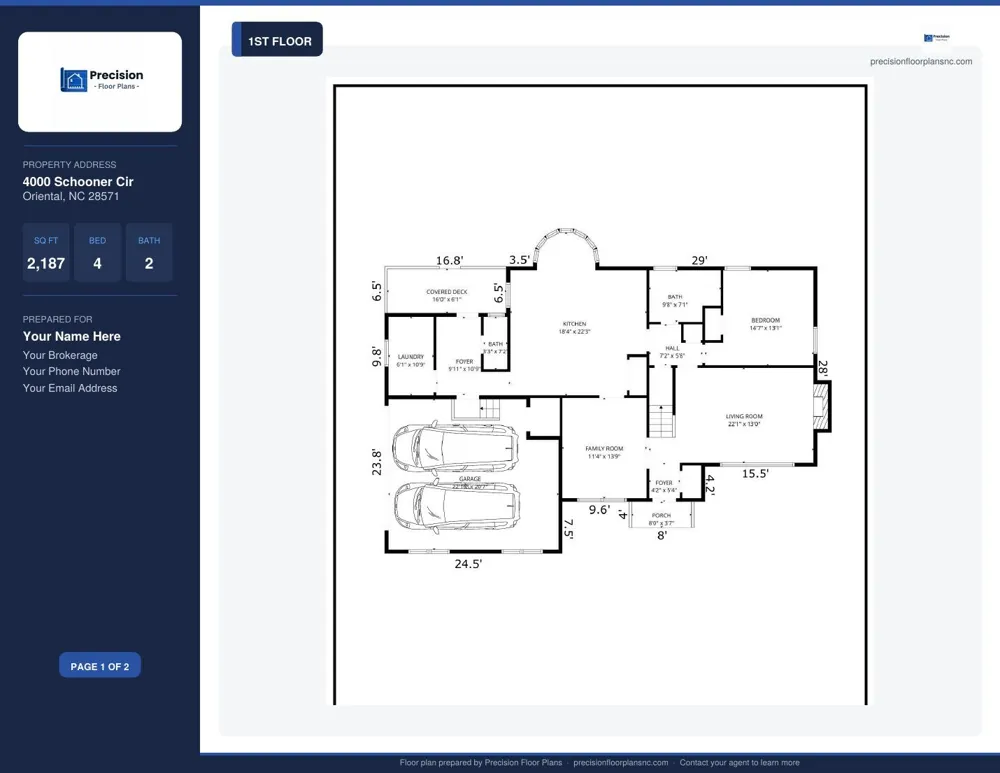

What you receive
A clean, branded PDF sized for print and the MLS, with your name, brokerage, and contact details on every page.
Why ANSI Z765 matters
ANSI Z765 is the national standard for measuring single-family homes. It defines exactly what counts as living area, how walls are measured, and how the total is reported, so two people measuring the same house get the same number.
Since April 2022, Fannie Mae has required appraisers to measure homes using ANSI Z765 in the appraisals delivered to it. When your listing uses the same standard, the number a buyer sees in the MLS is far less likely to be contradicted later in the transaction.
-
Fewer surprises at closing
Square footage that shifts late in a deal creates renegotiations and, occasionally, lawsuits. A measurement to the national standard up front removes that risk.
-
A number you can defend
If a buyer or their agent questions the square footage, you can point to the standard the plan was measured to, not a tax record or a builder's brochure.
-
Consistent across your listings
Every plan follows the same rules for stairs, sloped ceilings, finished basements, and enclosed porches. Your listings stay comparable to one another and to the market.
-
Confidence for buyers
A professional floor plan with a standards-based GLA helps buyers picture the home and trust the numbers, which keeps them moving toward an offer.
Serving Onslow and Pender counties
We are based in Jacksonville, NC and cover listings across Onslow and Pender counties with no travel fee. Nearby counties are available by request.
Request a floor plan
Tell us about the property and we will reply with a visit time, usually within one business day.
Prefer email? Send the address and the tier you need to
[email protected]Precision Floor Plans is a floor plan and measurement service. We do not provide appraisals or opinions of value.
